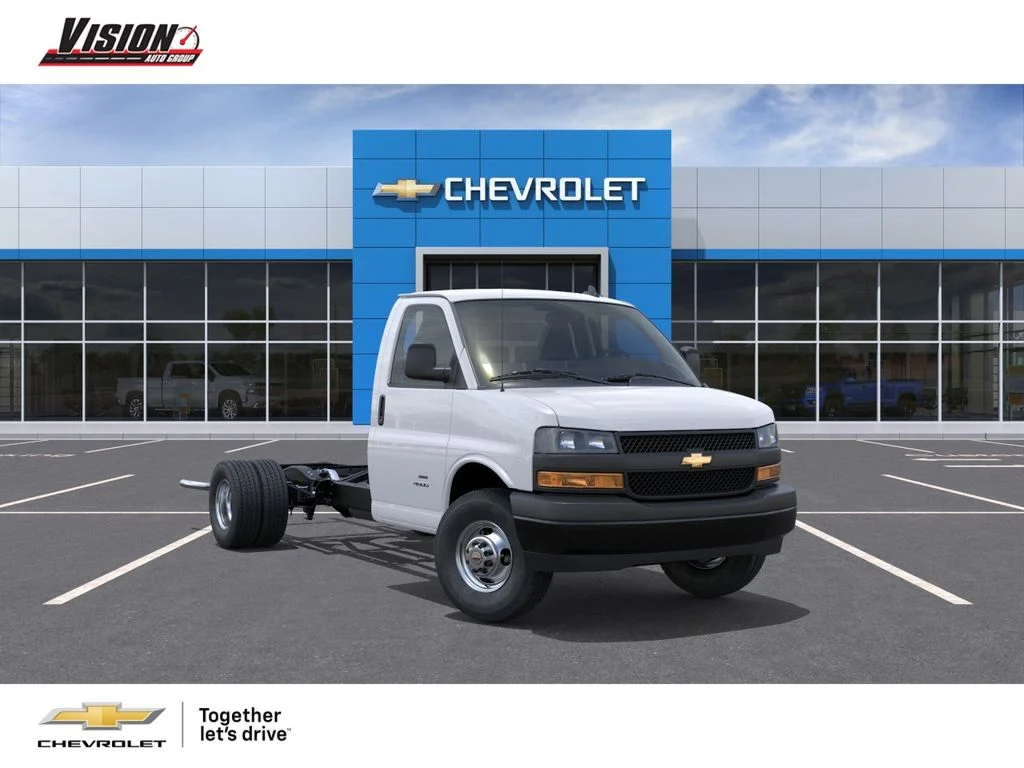

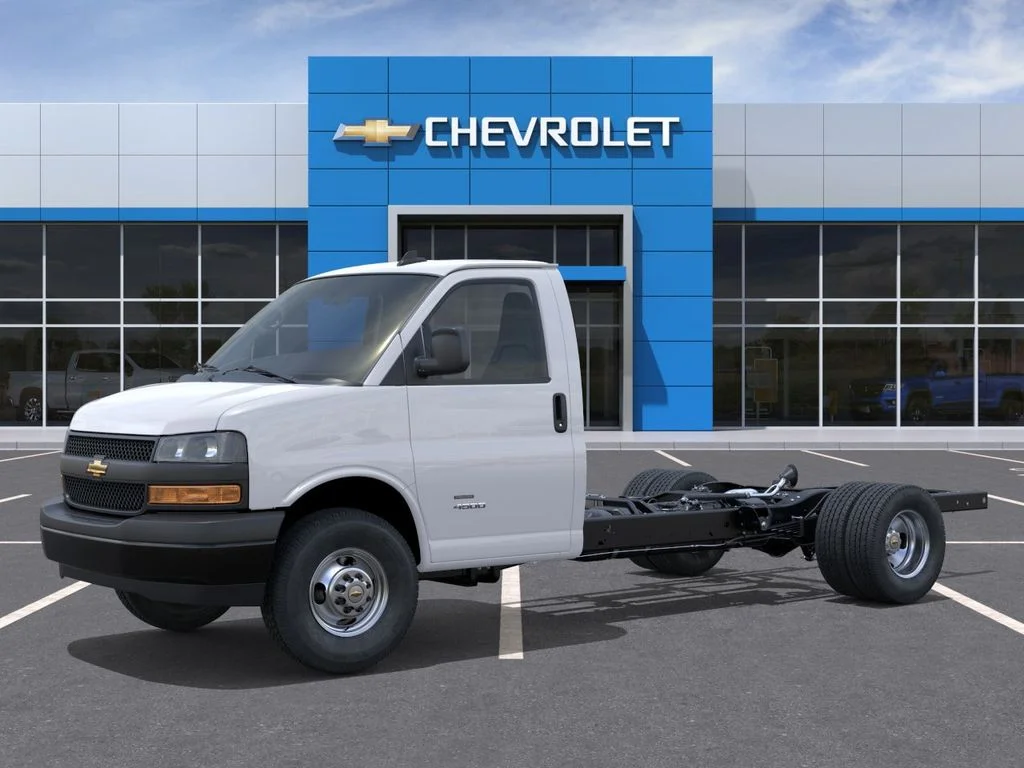

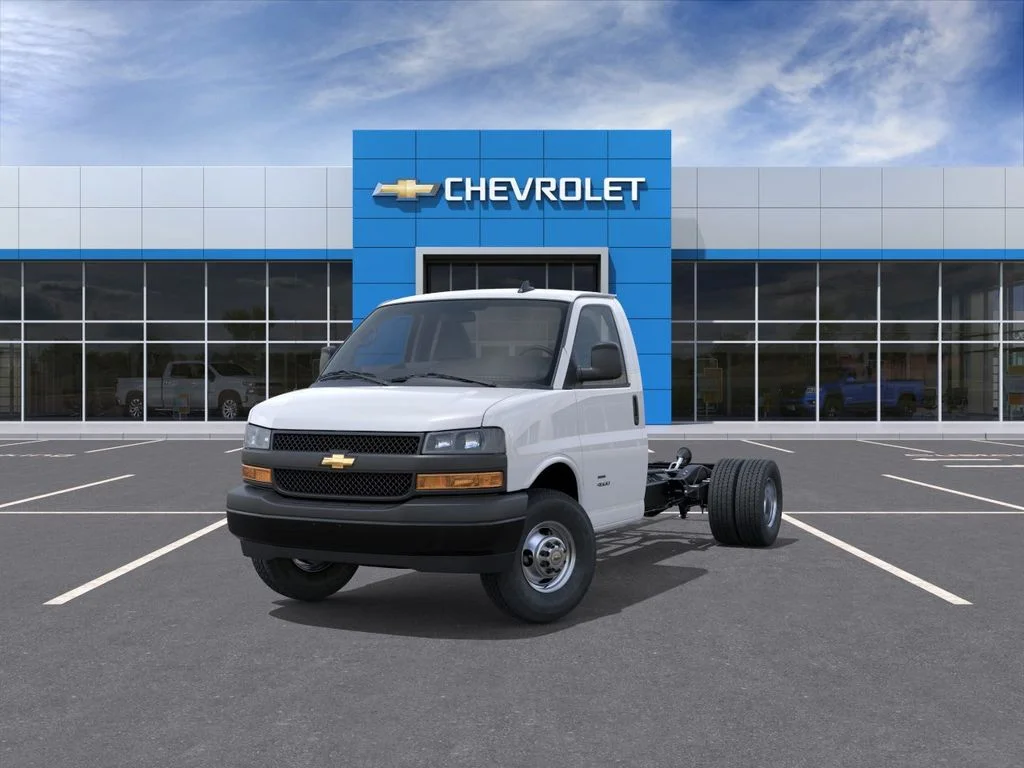

New 2025 Chevrolet Express Cutaway 4500 Series RWD 2D Chassis
- VIN: 1HA6GUC79SN021940
- Stock: V6X021940
New 2025 Chevrolet Express Cutaway 4500 Series RWD
VIN: 1HA6GUC79SN021940STOCK: V6X021940Location:
Vision Chevrolet
Basic Info
-
Exterior:White
-
Drivetrain:RWD
-
Interior:Medium Pewter
-
Transmission:8-Speed Automatic
-
Engine:6.6L V8
Key Features
-
Backup Camera
-
Keyless Entry
-
Navigation System
Description
Vehicle Details
Exterior
- Tires, front LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
- Tires, rear LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
- Wheel configuration, rear, dual (Not available with (C4M) 9900 lb. (4490 kg) GVWR or (JFF) 10,100 lb. (4581 kg) GVWR.)
- Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)

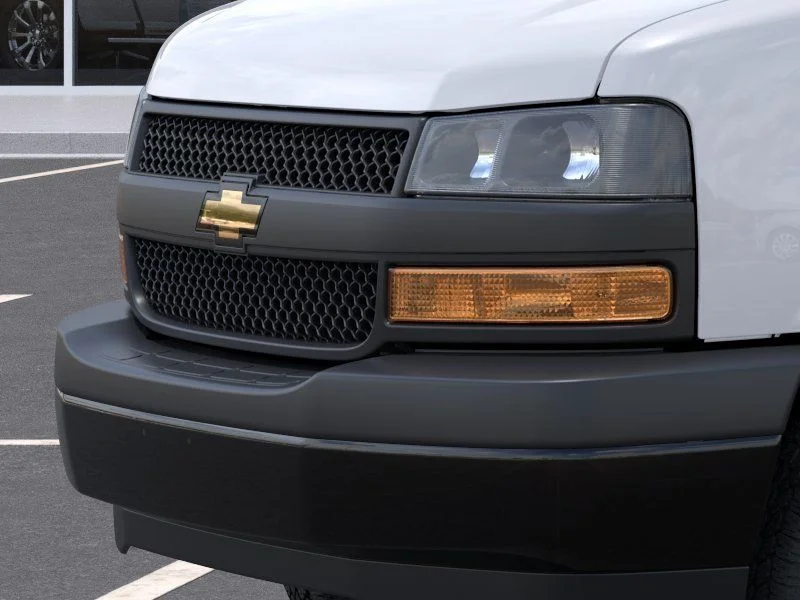

- Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)

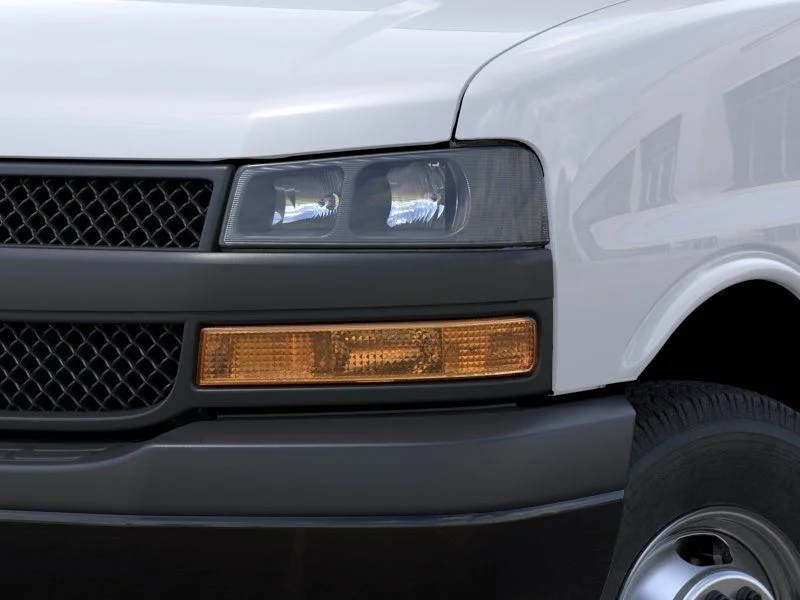

- Headlamps, dual halogen composite
- Flasher, heavy duty light emitting diode (LED)
- Glass, Solar-Ray light-tinted, all windows
- Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
- Wipers, front intermittent wet-arm with pulse washers
- License plate kit, front

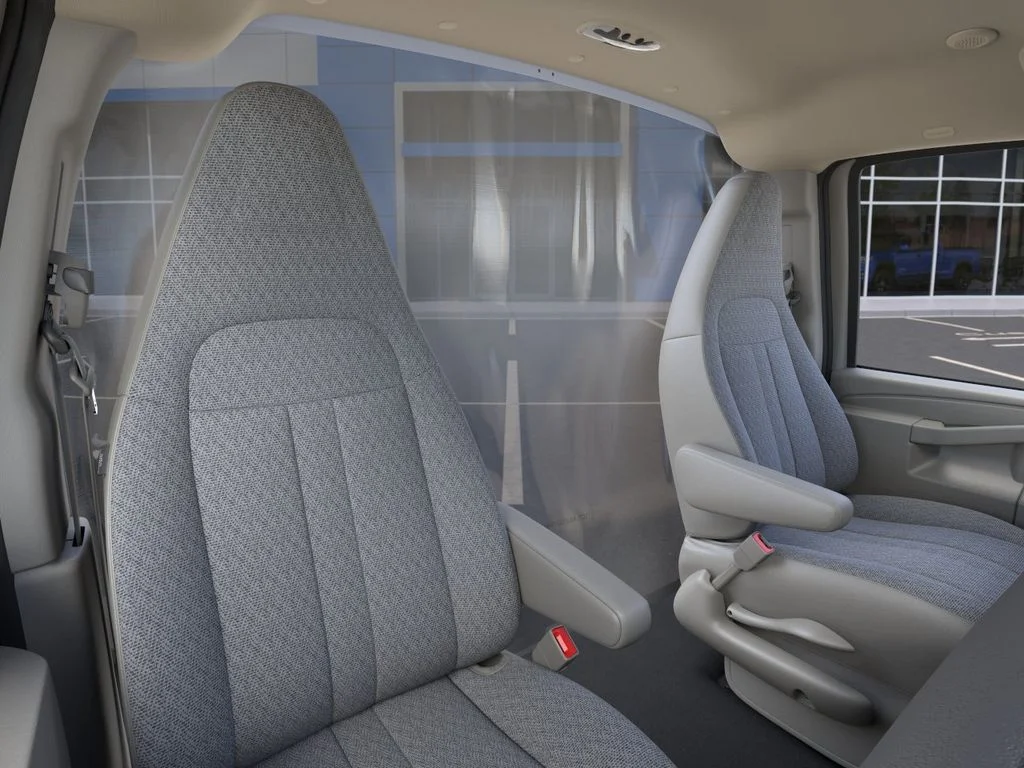

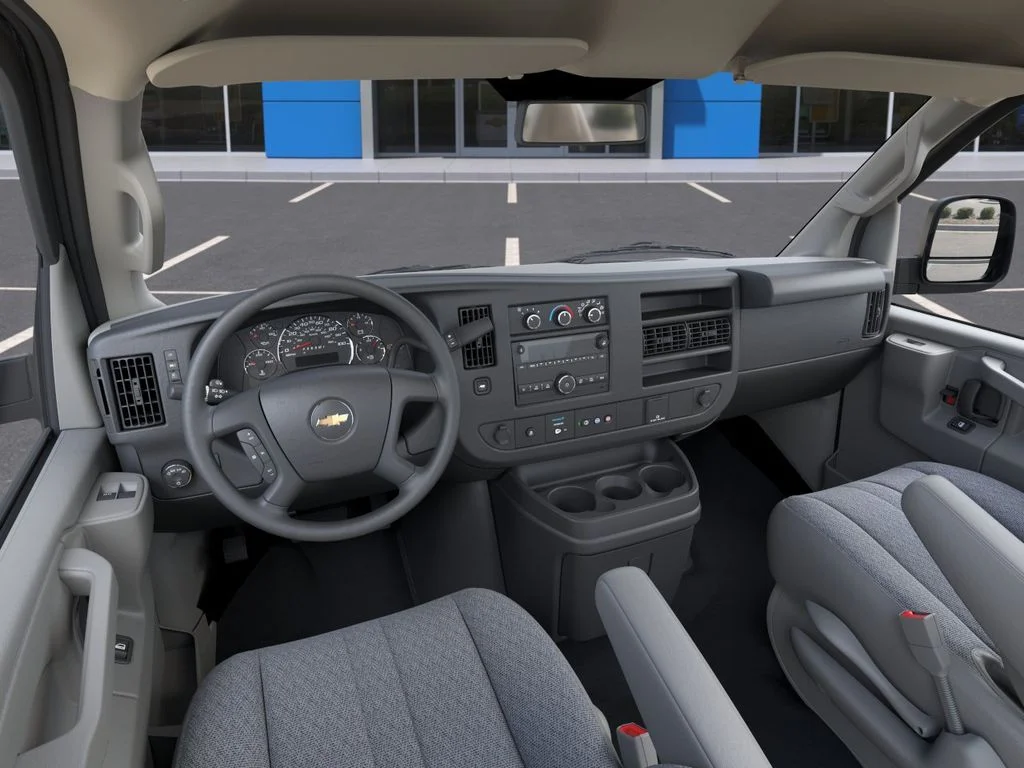

Interior

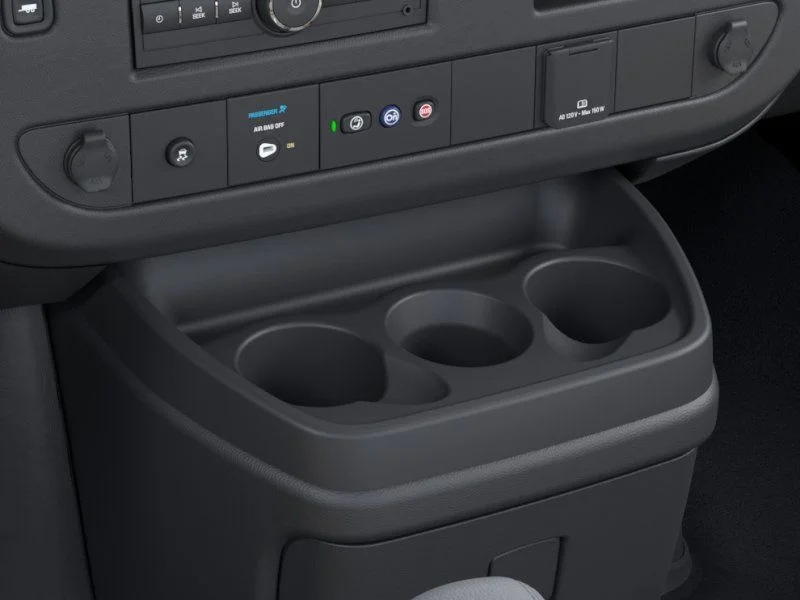

- Cup holders, 3 on the engine console cover
- Floor covering, Black rubberized-vinyl front

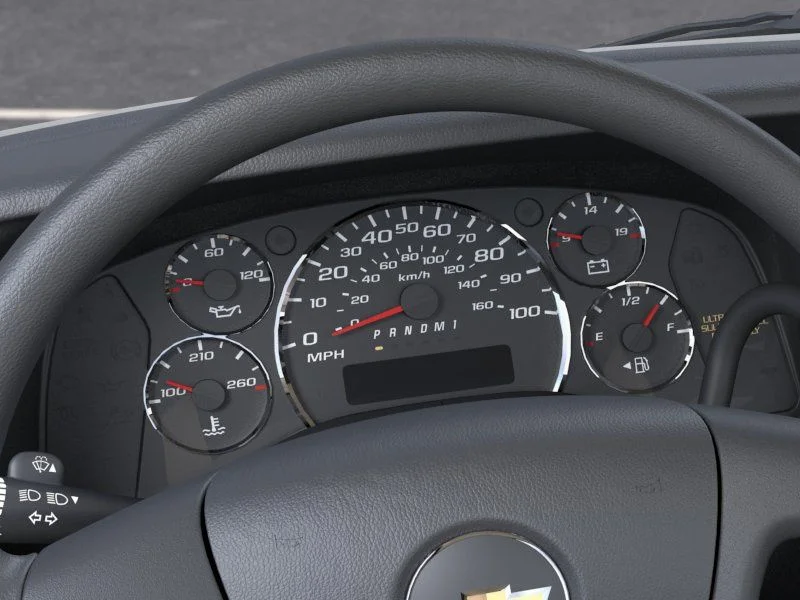

- Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
- Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders
- Warning tones, headlamp on and key-in-ignition
- Oil life monitor
- Theft-deterrent system, vehicle, PASS-Key III

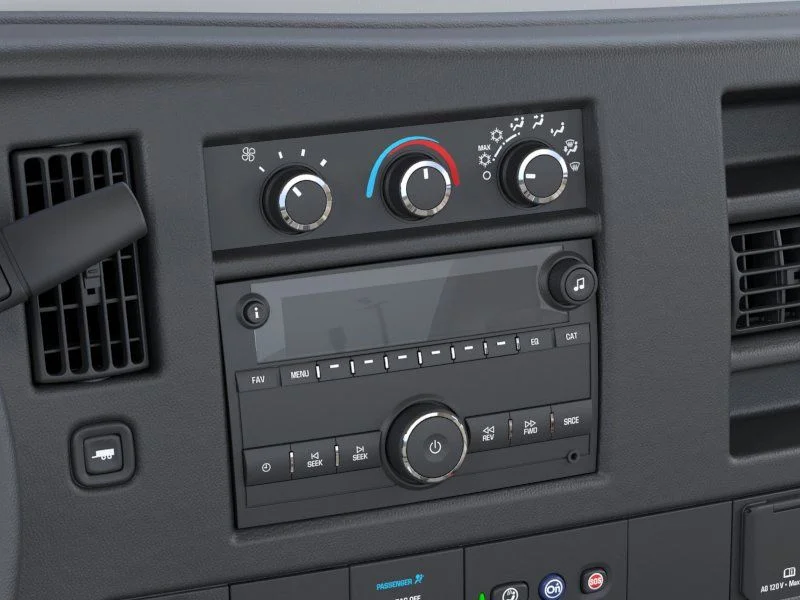

- Air conditioning, single-zone manual
- Heater and defogger with front and side window defoggers
- Mirror, inside rearview manual day/night (Not available with (UVC) rear vision camera.)
- Headliner, cloth, over driver and passenger
- Visors, driver and front passenger, cloth, padded
- Assist handles, driver and right-front passenger
- Lighting, interior with dome light and door handle-activated switches
Mechanical
- Engine, 6.6L V8 with Direct Injection and Variable Valve Timing, gasoline, (401 hp [299 kW] @ 5200 rpm, 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler. Requires (N8X) 8-speed heavy-duty automatic transmission. Reference the Engine/Axle page for availability.)
- Rear Axle, 4.10 Ratio
- Body, standard
- GVWR, 14,200 lbs. (6441 kg)
- Tow/haul mode selector, instrument panel-mounted
- Rear wheel drive
- Cooling, external engine oil cooler
- Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
- Alternator, 150 amps

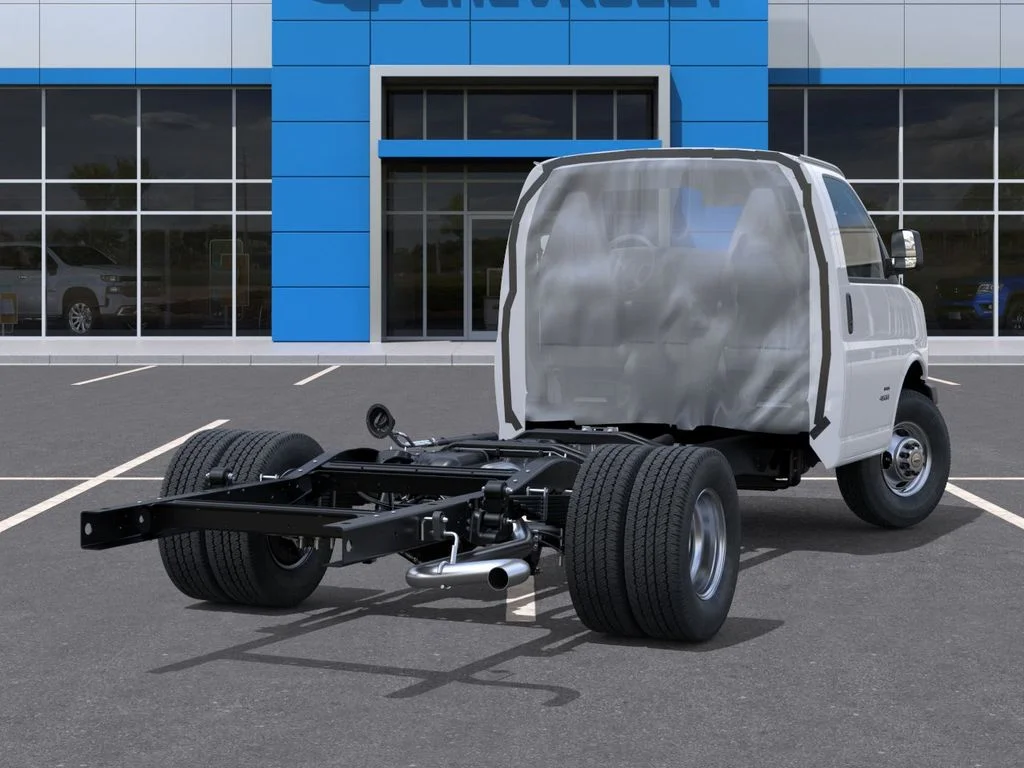

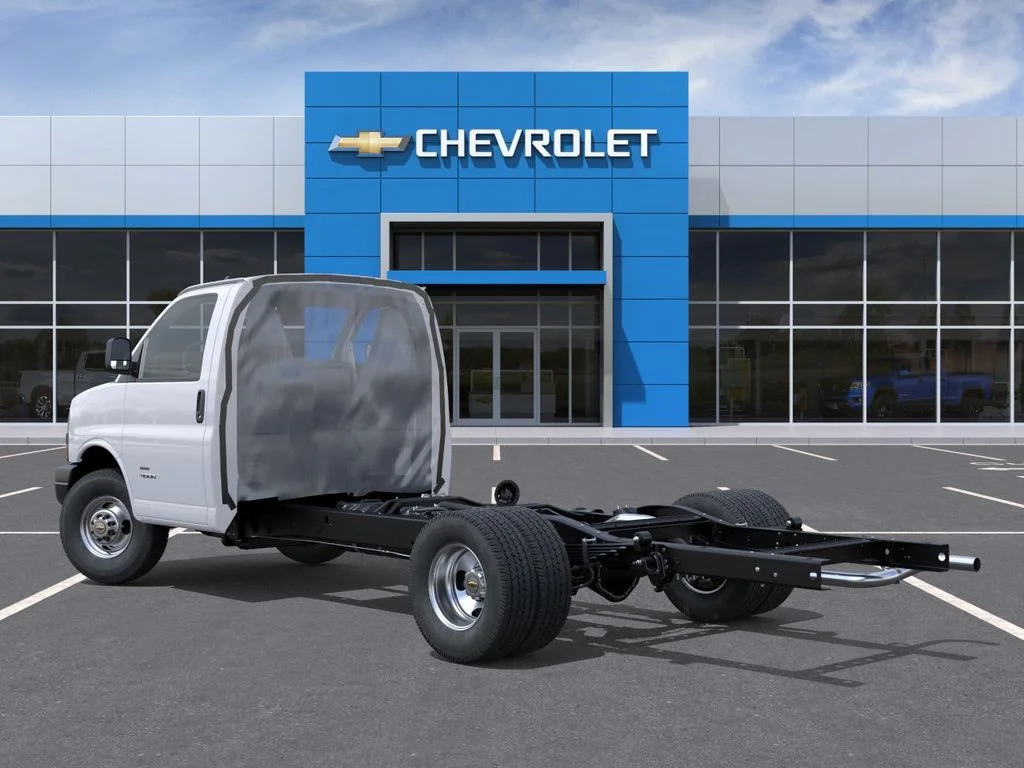

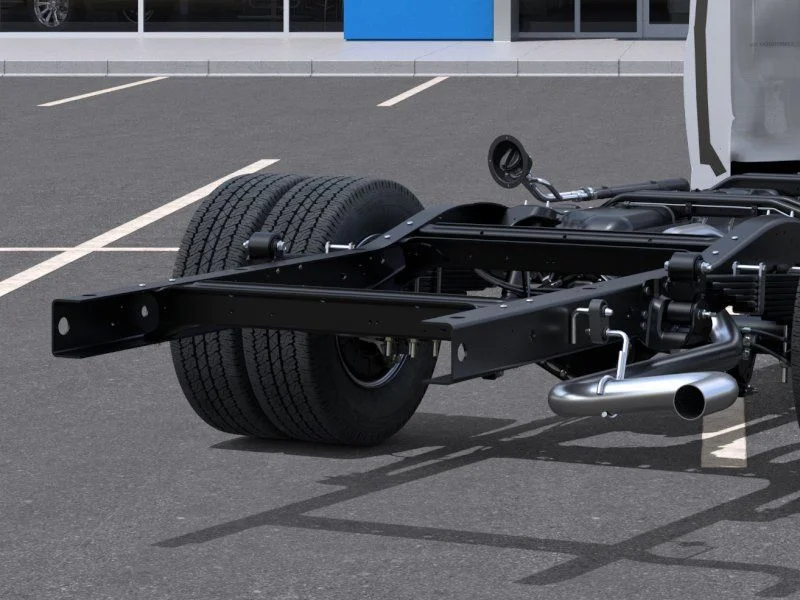

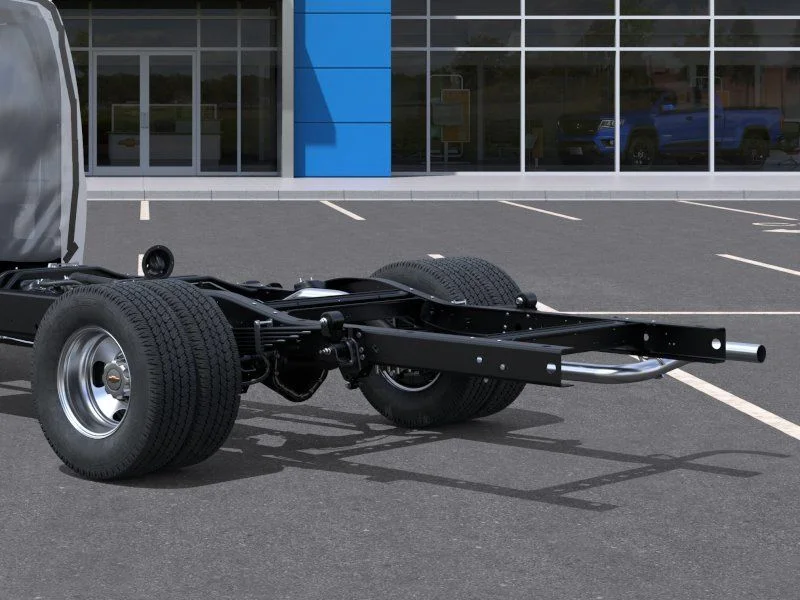

- Frame, ladder-type
- Incomplete vehicle certification
- Suspension, front independent with coil springs and stabilizer bar
- Suspension, rear hypoid drive axle with multi-leaf springs
- Steering, power,
- Brakes, 4-wheel antilock, 4-wheel disc
- Fuel tank capacity, mid-frame and approximately 32 gallons (121.1L)
- Exhaust, aluminized stainless-steel muffler and tailpipe
Safety
- Daytime Running Lamps
- StabiliTrak, traction assistance and vehicle stability enhancement system
- Brake/transmission shift interlock for automatic transmissions
- Hill Start Assist
Tech Specs
- Vehicle Name: Chevrolet Express Commercial Cutaway
- Body Style: 159.0" WB
- Body Code: ZW9
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 2
- Gross Axle Wt Rating - Front: 4600
- Gross Axle Wt Rating - Rear: 9600
- Curb Weight - Front: 3206
- Curb Weight - Rear: 1762
- Gross Vehicle Weight Rating Cap: 14200
- Fuel Economy Est-Combined:
- EPA Fuel Economy Est - City:
- EPA Fuel Economy Est - Hwy:
- Tons/yr of CO2 Emissions @ 15K mi/year:
- Gross Combined Wt Rating: 20000
- Dead Weight Hitch - Max Trailer Wt.:
- Dead Weight Hitch - Max Tongue Wt.:
- Wt Distributing Hitch - Max Trailer Wt.:
- Wt Distributing Hitch - Max Tongue Wt.:
- Fifth Wheel Hitch - Max Trailer Wt.:
- Fifth Wheel Hitch - Max Tongue Wt.:
- Engine Order Code: L8T
- Engine Type: Gas V8
- Displacement: 6.6L/- TBD -
- Fuel System: Electronic Fuel Injection
- SAE Net Horsepower @ RPM: 401 @ 5200
- SAE Net Torque @ RPM: 464 @ 4000
- Trans Order Code: N8X
- Trans Type: 8
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): - TBD -
- Second Gear Ratio (:1): - TBD -
- Third Gear Ratio (:1): - TBD -
- Fourth Gear Ratio (:1): - TBD -
- Fifth Gear Ratio (:1): - TBD -
- Sixth Gear Ratio (:1): - TBD -
- Seventh Gear Ratio (:1): - TBD -
- Eighth Gear Ratio (:1): - TBD -
- Reverse Ratio (:1): - TBD -
- Clutch Size:
- Trans Power Take Off:
- Trans PTO Access:
- Transfer Case Model:
- Transfer Case Gear Ratio (:1), High:
- Transfer Case Gear Ratio (:1), Low:
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 600
- Cold Cranking Amps @ 0° F (2nd):
- Maximum Alternator Capacity (amps): 150
- Maximum Alternator Watts:
- Total Cooling System Capacity: - TBD -
- Engine Oil Cooler: Yes
- Frame Type: Ladder-Type
- Suspension Type - Front: Indep Coil Spring
- Suspension Type - Rear: Multi-Leaf
- Spring Capacity - Front: 4600
- Spring Capacity - Rear: 9600
- Axle Type - Front: Independent
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front: 4600
- Axle Capacity - Rear: 9600
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear: 4.10
- Shock Absorber Diameter - Front: 35.0
- Shock Absorber Diameter - Rear: 35.0
- Stabilizer Bar Diameter - Front: 1.38
- Stabilizer Bar Diameter - Rear:
- Front Tire Order Code: XHF
- Rear Tire Order Code: YHF
- Spare Tire Order Code:

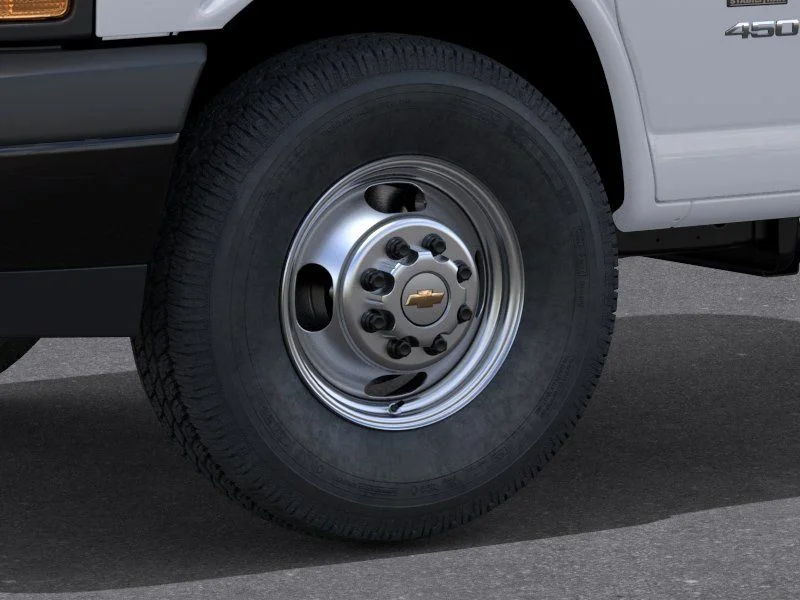

- Front Tire Size: LT225/75R16E
- Rear Tire Size: LT225/75R16E
- Spare Tire Size:
- Front Tire Capacity: 2335
- Rear Tire Capacity: 2470
- Spare Tire Capacity:
- Revolutions/Mile @ 45 mph - Front: N/A
- Revolutions/Mile @ 45 mph - Rear: N/A
- Revolutions/Mile @ 45 mph - Spare:
- Front Wheel Size: 16 x 6.5
- Rear Wheel Size: 16 x 6.5
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 17.2
- Steering Ratio (:1), At Lock: - TBD -
- Turning Diameter - Curb to Curb: 54.5
- Turning Diameter - Wall to Wall: N/A
- Brake Type: Pwr
- Brake ABS System: 4-wheel
- Brake ABS System (Second Line):
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 12.8 x 1.5
- Rear Brake Rotor Diam x Thickness: 13.58 x 1.6
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 32
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: Mid-frame
- Aux Fuel Tank Location:
- Front Head Room: 40.85
- Front Leg Room: 41.35
- Front Shoulder Room: 68.85
- Front Hip Room: 65.48
- Wheelbase: 159
- Length, Overall: 267.15
- Width, Max w/o mirrors: 94.53
- Height, Overall: 83.78
- Overhang, Front: 39.70
- Overhang, Rear w/o bumper:
- Front Bumper to Back of Cab: 98.70
- Cab to Axle: 100.00
- Cab to End of Frame: 168.45
- Ground to Top of Load Floor:
- Ground to Top of Frame: 30.08
- Frame Width, Rear: 42.00
- Ground Clearance, Front: 9.30
- Ground Clearance, Rear: 8.35
- Model Group: Express Cutaway
- Vehicle Segment: Chassis
- Vehicle Type: Chassis
- Body Cab Style: Chassis
- Engine Displacement Units: 6.6
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 2
- Country of Origin: United States Chevrolet Truck, Incomplete Vehicle
Details
- Preferred Equipment Group 2WT
- 4.10 Rear Axle Ratio
- Heavy-Duty Locking Rear Differential
- Wheels: 16" x 6.5" 8-Lug Painted Steel HD (6)
- Dual Rear Wheel Configuration

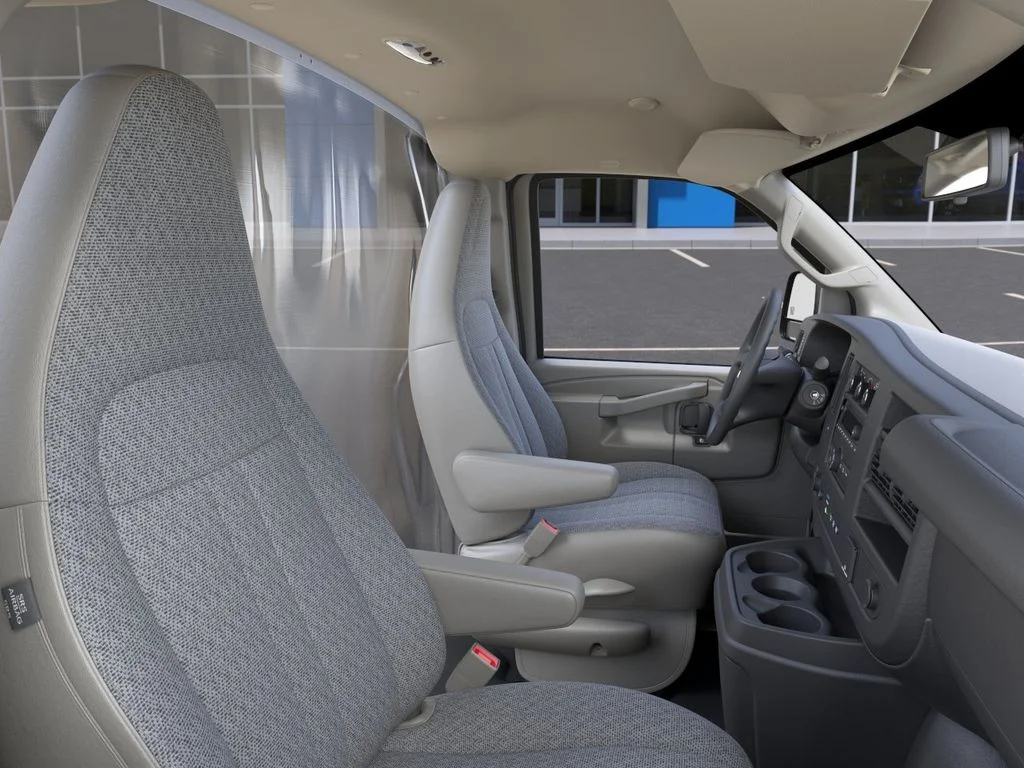

- Reclining High-Back Bucket Seats w/Inboard Armrests

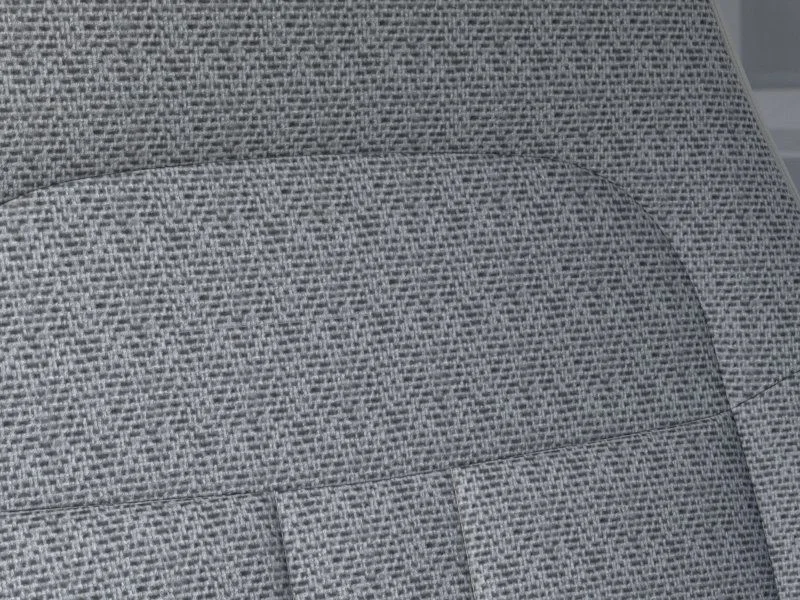

- Vinyl Seat Trim
- Driver & Front Passenger High-Back Bucket Seats
- Radio: AM/FM Stereo w/MP3 Player & Digital Clock
- Engine Cover Console w/Swing-Out Storage Bin
- Power Convenience Package
- Driver Convenience Package
- Rear Vision Camera
- Remote Keyless Entry
- Wide-Stance Sail Panel Mounted Outside Mirrors
- Trailering Wire Harness

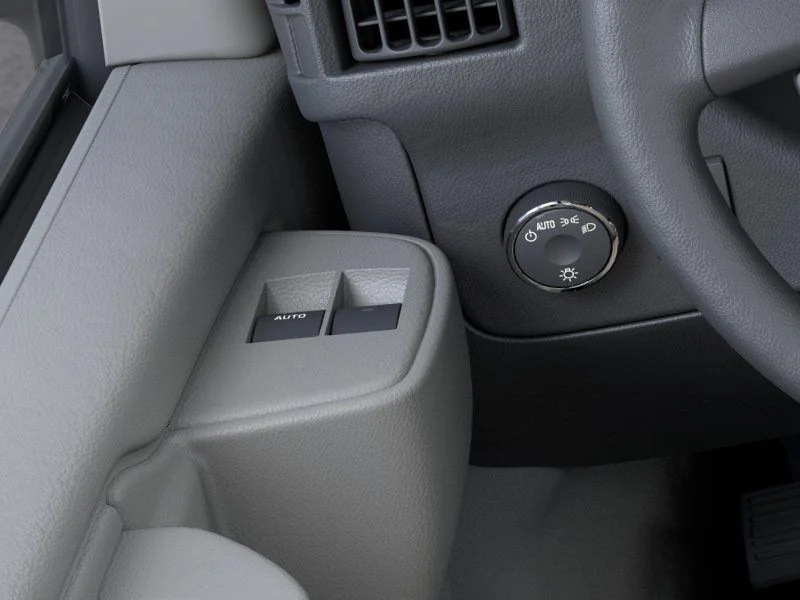

- Power Windows
- Power Door Locks w/Lock-Out Protection
- Manual Day/Night Inside Rear-View Mirror
- Inside Rearview Mirror w/Rr Vision Camera Display
- Cruise Control
- Tilt Steering Wheel
- Theft Alarm Notification
- 4-Wheel Disc Brakes
- Driver's Seat Mounted Armrest
- Dual rear wheels
- 2 Speakers
- Front beverage holders
- Variably intermittent wipers
- Trip computer
- Traction control
- Power steering
- Passenger seat mounted armrest
- Passenger door bin
- Passenger cancellable airbag
- Occupant sensing airbag
- Fully automatic headlights
- Front wheel independent suspension
- Front anti-roll bar
- Dual front impact airbags
- Driver door bin
- Delay-off headlights
- AM/FM radio
- ABS brakes
- Voltmeter
- Tachometer
- Front Bucket Seats
- Electronic Stability Control
- Air Conditioning
- Driver Air Bag
- Passenger Air Bag
- Passenger Air Bag On/Off Switch
- A/C
- AM/FM Stereo
- ABS
- Rear Defrost
- Rear Wheel Drive
- Dual Rear Wheels
- 8 Cylinder Engine
- Gasoline Fuel
- Daytime Running Lights
- Navigation System
- Power Steering
- Tires - Front All-Season
- Tires - Rear All-Season
- Traction Control
- Intermittent Wipers
- A/T
- MP3 Capability
- Power Outlet
- Immobilizer
- Transmission w/Dual Shift Mode
- Transmission Overdrive Switch
- Trip Computer
- Steel Wheels
- 8-Speed A/T
- Stability Control
- Auxiliary Audio Input
- Requires Subscription
