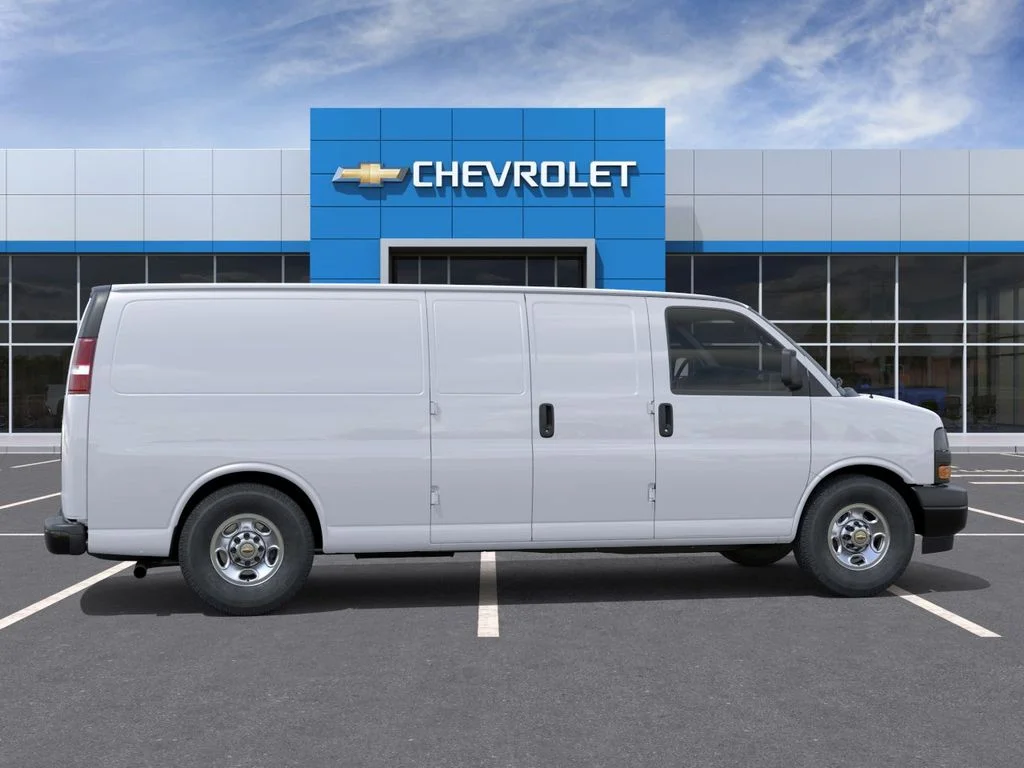

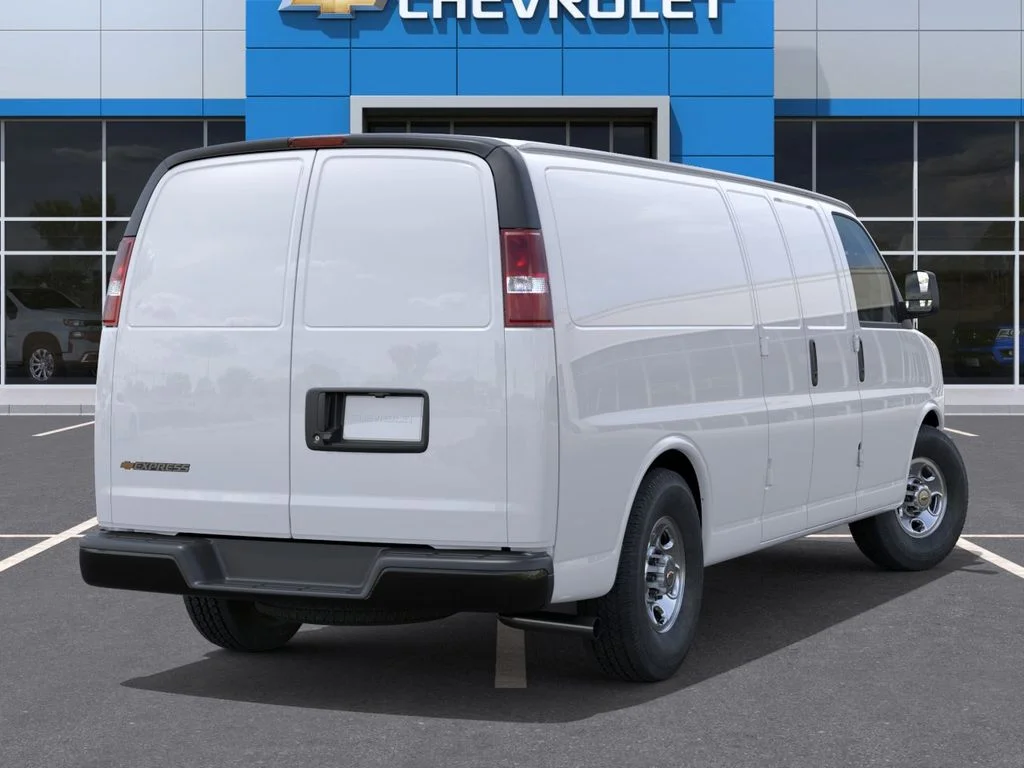

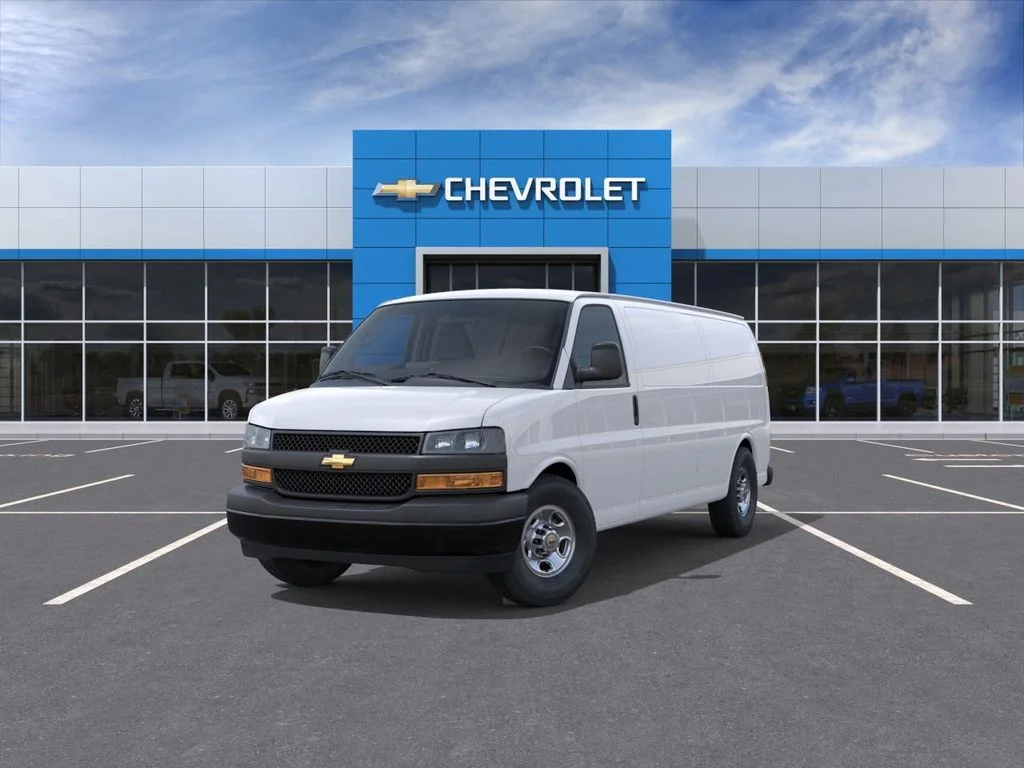

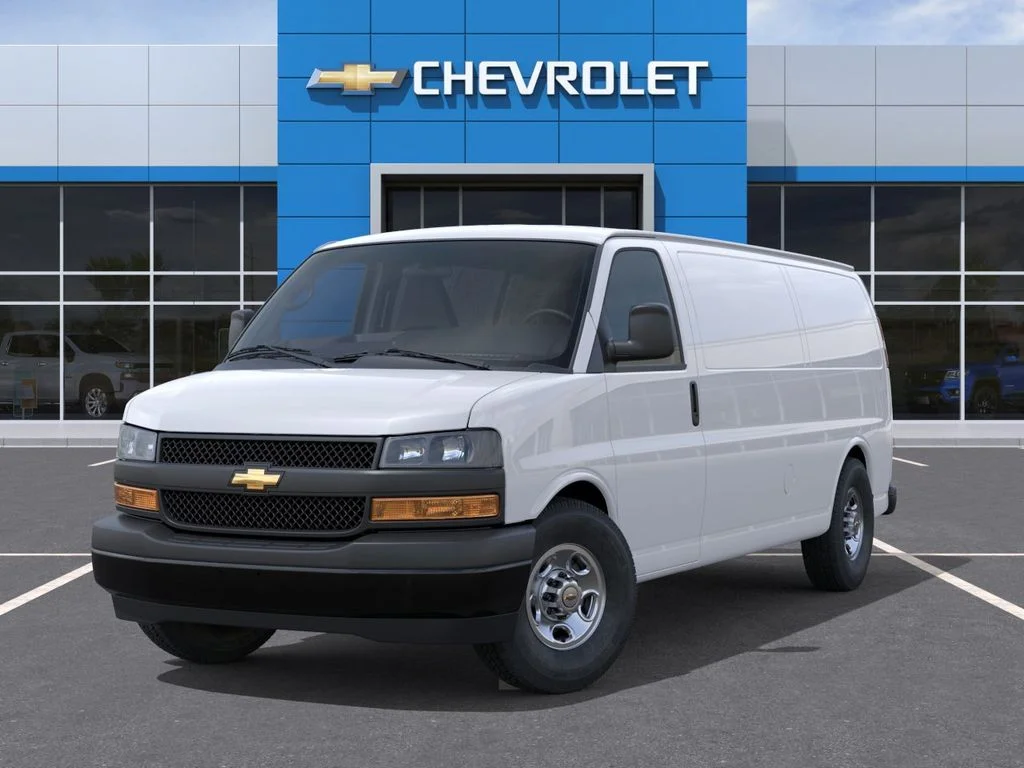

New 2026 Chevrolet Express 3500 Work Van RWD 3D Extended Cargo Van
- VIN: 1GCZGHF77T1216321
- Stock: V6X216321
New 2026 Chevrolet Express 3500 Work Van RWD
VIN: 1GCZGHF77T1216321STOCK: V6X216321Location:
Vision Chevrolet
Basic Info
-
Exterior:White
-
Drivetrain:RWD
-
Interior:Medium Pewter
-
Transmission:Automatic with Overdrive
-
Engine:6.6L V8
Key Features
-
Backup Camera
-
Keyless Entry
-
Rear A/C
Description
Summit White 2026 Chevrolet Express 3500 Work Van Cargo RWD Automatic with Overdrive 6.6L V8
Vehicle Details
Exterior
- Door, swing-out passenger-side, 60/40 split

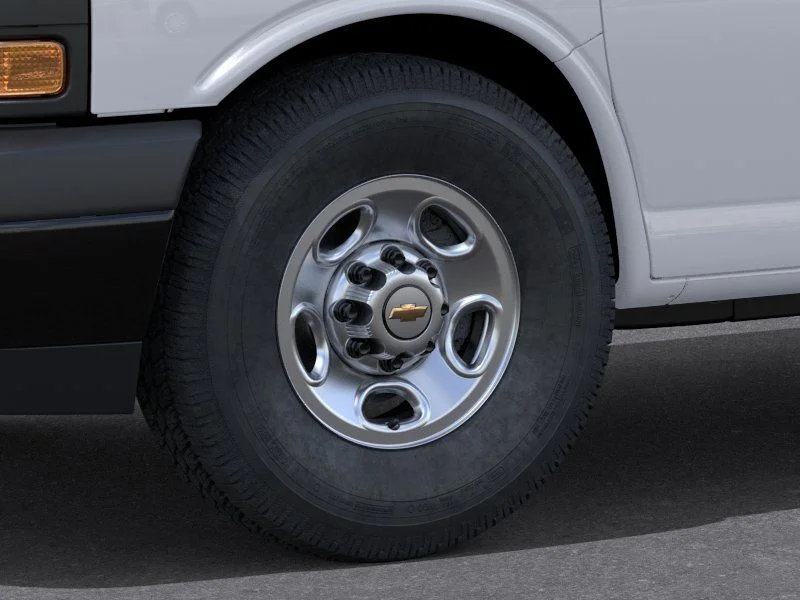

- Tires, front LT245/75R16E all-season, blackwall
- Tires, rear LT245/75R16E all-season, blackwall

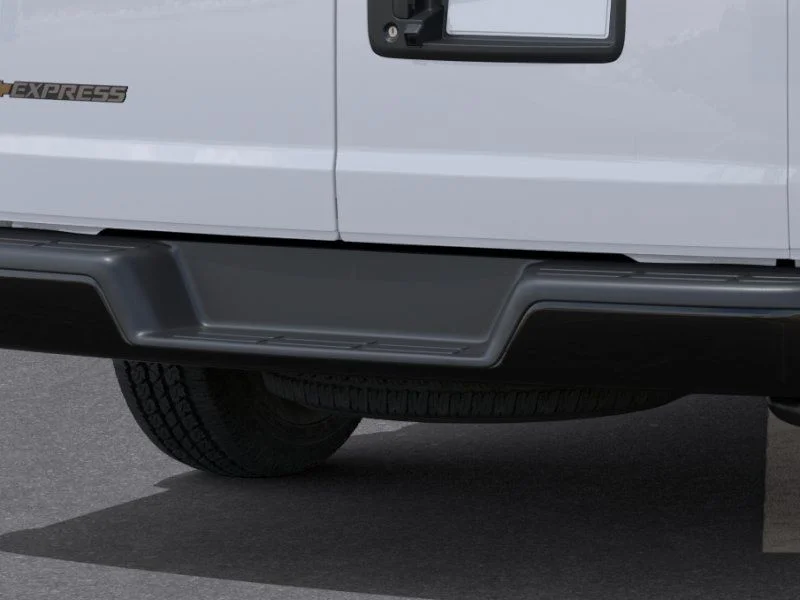

- Bumpers, front and rear painted Black with step-pad

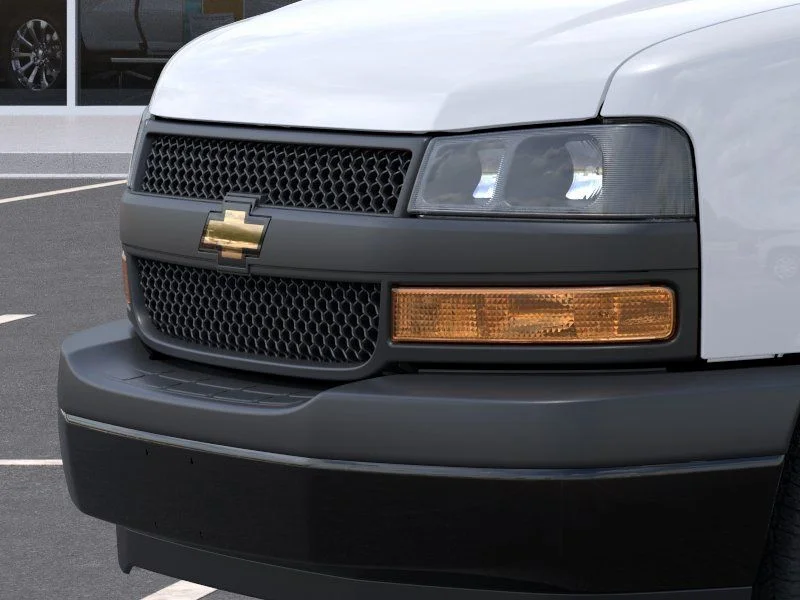

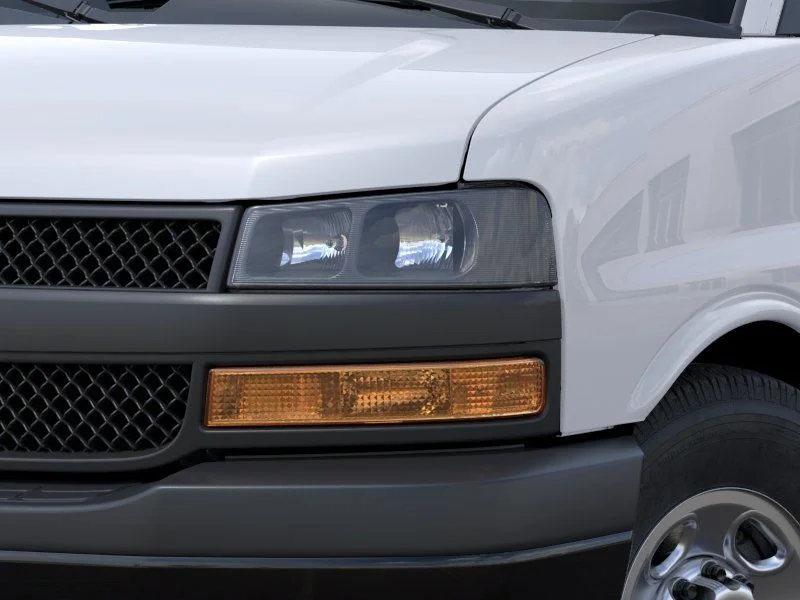

- Headlamps, dual halogen composite

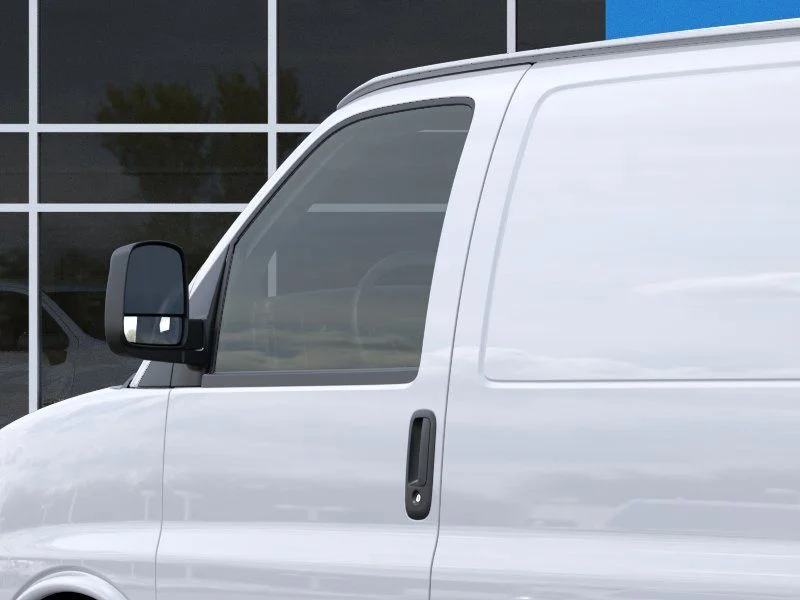

- Mirrors, outside heated power-adjustable, Black, manual-folding
- Glass, Solar-Ray light-tinted, all windows
- Wipers, front intermittent wet-arm with pulse washers
- License plate kit, front

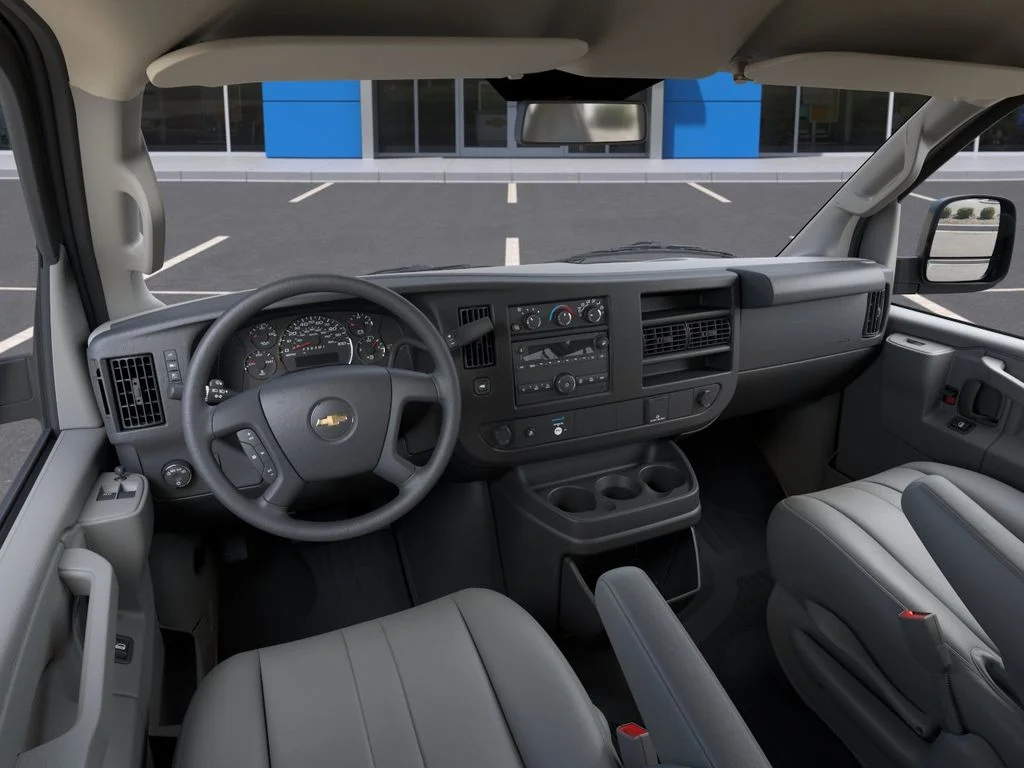

Interior
- Console, engine cover with open storage bin
- Floor covering, full-length Black rubberized-vinyl (Not available with (RFM) rear floor covering delete, (PCH) Hotel Shuttle Package or (YF2) Ambulance Package.)

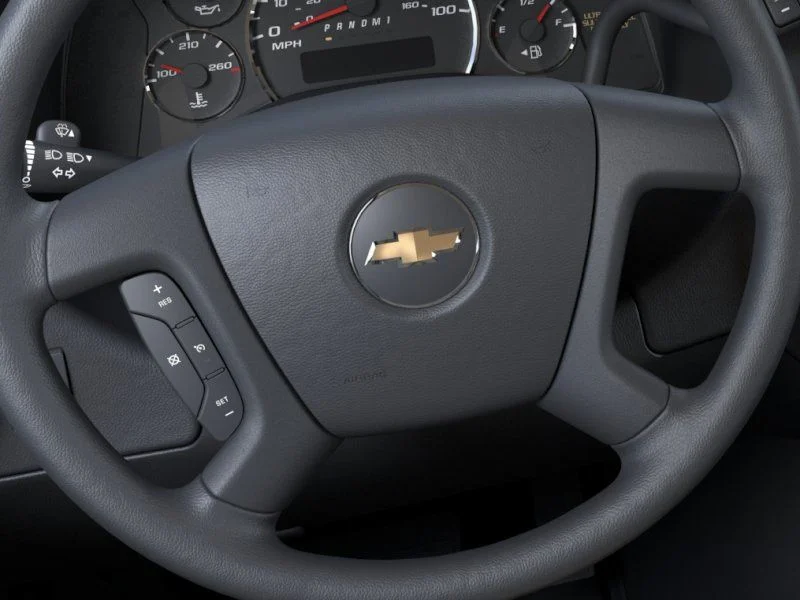

- Steering wheel, steel sleeve column with theft-deterrent locking feature, Black

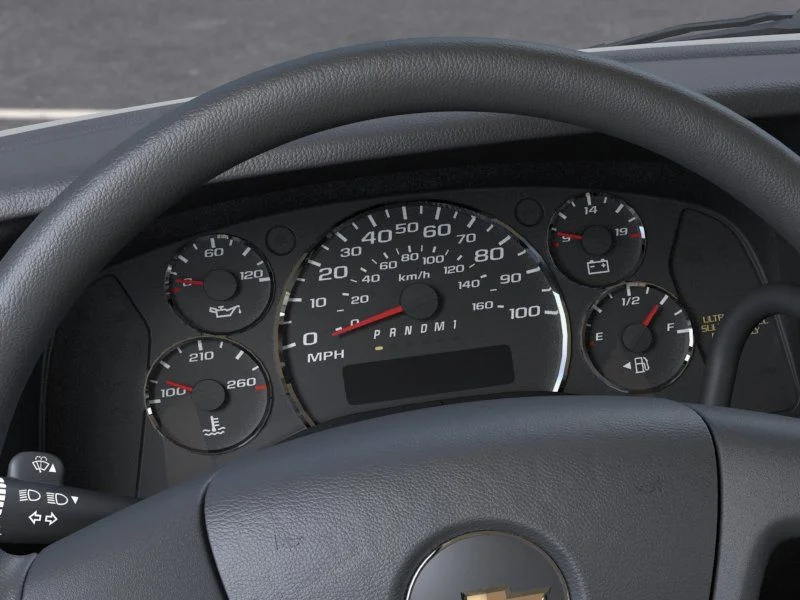

- Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
- Oil life monitor
- Warning tones, headlamp on and key-in-ignition
- Tow/haul mode selector, instrument panel-mounted
- Theft-deterrent system, vehicle, PASS-Key III
- Defogger, side windows

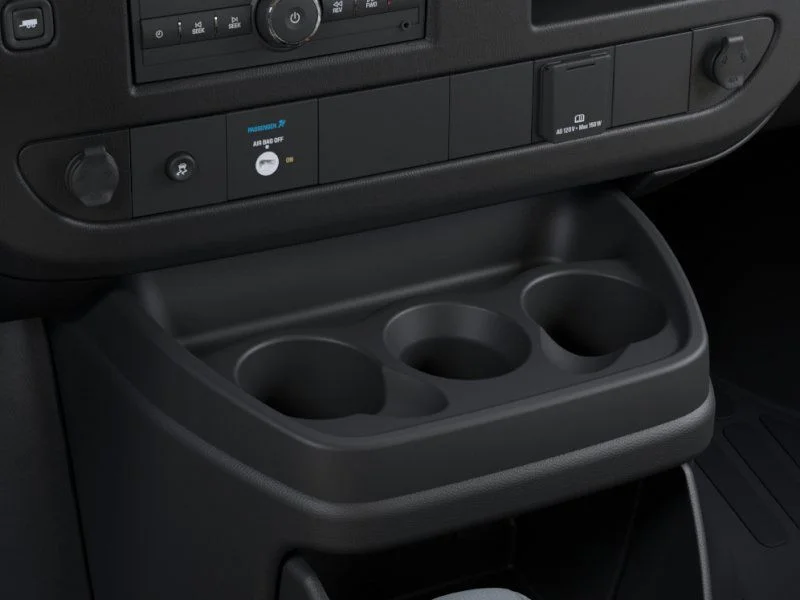

- Cup holders, 3 on the engine console cover
- Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package.)

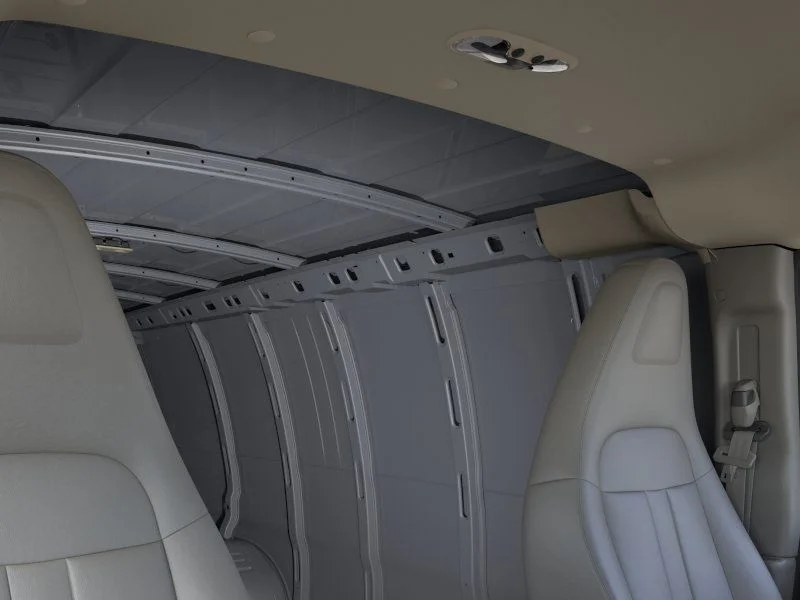

- Headliner, cloth, over driver and passenger
- Visors, driver and front passenger, vinyl
- Assist handles, driver and right-front passenger
- Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
- Cargo tie-downs 6 D-ring attachments on cargo area floor (Not available with (YF2) Ambulance Package, (Y3H) Paratransit Package or (ZP6) 5-passenger Express Crew Van.)
Mechanical
- Rear axle, 3.42 ratio (Reference the Engine/Axle page for availability.)
- Body, standard
- GVWR, 9600 lbs. (4354 kg) (Reference the Engine/Axle page for availability.)
- Emission System, 8.5K-10K GVW (Requires (FE9) Federal emissions requirements, (YF5) California state emissions requirements or (NE1) Colorado, Connecticut, Delaware, Maine, Maryland, Massachusetts, Minnesota, Nevada, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont or Washington state emissions requirements.)
- Rear wheel drive
- Cooling, external engine oil cooler
- Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
- Alternator, 105 amps (Not available with (Y3H) Paratransit Package, (YF2) Ambulance Package, (C69) rear air conditioning or (9L7) Wiring junction block equipment accessory.)
- Frame, full-length box ladder-type
- Suspension, front independent with coil springs and stabilizer bar
- Suspension, rear hypoid drive axle with multi-leaf springs
- Steering, power,
- Brakes, 4-wheel antilock, 4-wheel disc
- Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
- Exhaust, aluminized stainless-steel muffler and tailpipe
Safety
- Brake/transmission shift interlock, for automatic transmissions
- Hill Start Assist
- StabiliTrak, traction assistance and vehicle stability enhancement system
- Door beams, steel-side
- Daytime Running Lamps
Tech Specs
- Vehicle Name: Chevrolet Express Cargo Van
- Body Style: Cargo Van
- Body Code: ZW9
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 2
- Gross Axle Wt Rating - Front: 4300
- Gross Axle Wt Rating - Rear: 6084
- Curb Weight - Front: 3001
- Curb Weight - Rear: 2328
- Gross Vehicle Weight Rating Cap: 9600
- Fuel Economy Est-Combined:
- EPA Fuel Economy Est - City:
- EPA Fuel Economy Est - Hwy:
- Tons/yr of CO2 Emissions @ 15K mi/year:
- Gross Combined Wt Rating: 16000
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 10000
- Wt Distributing Hitch - Max Tongue Wt.: 1000
- Fifth Wheel Hitch - Max Trailer Wt.:
- Fifth Wheel Hitch - Max Tongue Wt.:
- Maximum Trailering Capacity: 10000
- Engine Order Code: L8T
- Engine Type: Gas V8
- Displacement: 6.6L/- TBD -
- Fuel System: Electronic Fuel Injection
- SAE Net Horsepower @ RPM: 401 @ 5200
- SAE Net Torque @ RPM: 464 @ 4000
- Trans Order Code: MTH
- Trans Type: 8
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): - TBD -
- Second Gear Ratio (:1): - TBD -
- Third Gear Ratio (:1): - TBD -
- Fourth Gear Ratio (:1): - TBD -
- Fifth Gear Ratio (:1): - TBD -
- Sixth Gear Ratio (:1): - TBD -
- Seventh Gear Ratio (:1): - TBD -
- Eighth Gear Ratio (:1): - TBD -
- Reverse Ratio (:1): - TBD -
- Clutch Size:
- Trans Power Take Off:
- Trans PTO Access:
- Transfer Case Model:
- Transfer Case Gear Ratio (:1), High:
- Transfer Case Gear Ratio (:1), Low:
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 600
- Cold Cranking Amps @ 0° F (2nd):
- Maximum Alternator Capacity (amps): 105
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity: - TBD -
- Engine Oil Cooler: Yes
- Frame Type: Ladder
- Suspension Type - Front: Coil Spring
- Suspension Type - Rear: Hypoid Multi-Leaf
- Spring Capacity - Front: 4300
- Spring Capacity - Rear: 6084
- Axle Type - Front: Independent
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front: 4300
- Axle Capacity - Rear: 6084
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear: 3.42
- Shock Absorber Diameter - Front: N/A
- Shock Absorber Diameter - Rear: N/A
- Stabilizer Bar Diameter - Front: 1.38
- Stabilizer Bar Diameter - Rear:
- Front Tire Order Code: XLP
- Rear Tire Order Code: YLP
- Spare Tire Order Code: ZLP
- Front Tire Size: LT245/75R16E
- Rear Tire Size: LT245/75R16E
- Spare Tire Size: LT245/75R16E
- Front Tire Capacity: 2205
- Rear Tire Capacity: 3042
- Spare Tire Capacity: - TBD -
- Revolutions/Mile @ 45 mph - Front: - TBD -
- Revolutions/Mile @ 45 mph - Rear: - TBD -
- Revolutions/Mile @ 45 mph - Spare: - TBD -
- Front Wheel Size: 16 x 6.5
- Rear Wheel Size: 16 x 6.5
- Spare Wheel Size: 16 x 6.5
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material: Steel
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 17.2
- Steering Ratio (:1), At Lock: 17.2
- Turning Diameter - Curb to Curb: 54.5
- Turning Diameter - Wall to Wall: N/A
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line):
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 12.8 x 1.5
- Rear Brake Rotor Diam x Thickness: 13.0 x 1.1
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 31
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: Mid-Frame
- Aux Fuel Tank Location:
- Front Head Room: 40.85
- Front Leg Room: 41.35
- Front Shoulder Room: 68.85
- Front Hip Room: 65.47
- Wheelbase: 155
- Length, Overall: 244.05
- Width, Max w/o mirrors: 79.25
- Height, Overall: 84.25
- Overhang, Front: 39.7
- Overhang, Rear w/bumper: - TBD -
- Ground to Top of Load Floor: 29.75
- Ground Clearance, Front: 9.65
- Ground Clearance, Rear: 8.6
- Rear Door Type: Dual Swing-Out
- Rear Door Opening Height: 47.95
- Rear Door Opening Width: 53.42
- Side Door Type: Swing-Out
- Side Door Opening Height: - TBD -
- Side Door Opening Width: - TBD -
- Step Up Height - Front: 27.44
- Step Up Height - Side: 27.9

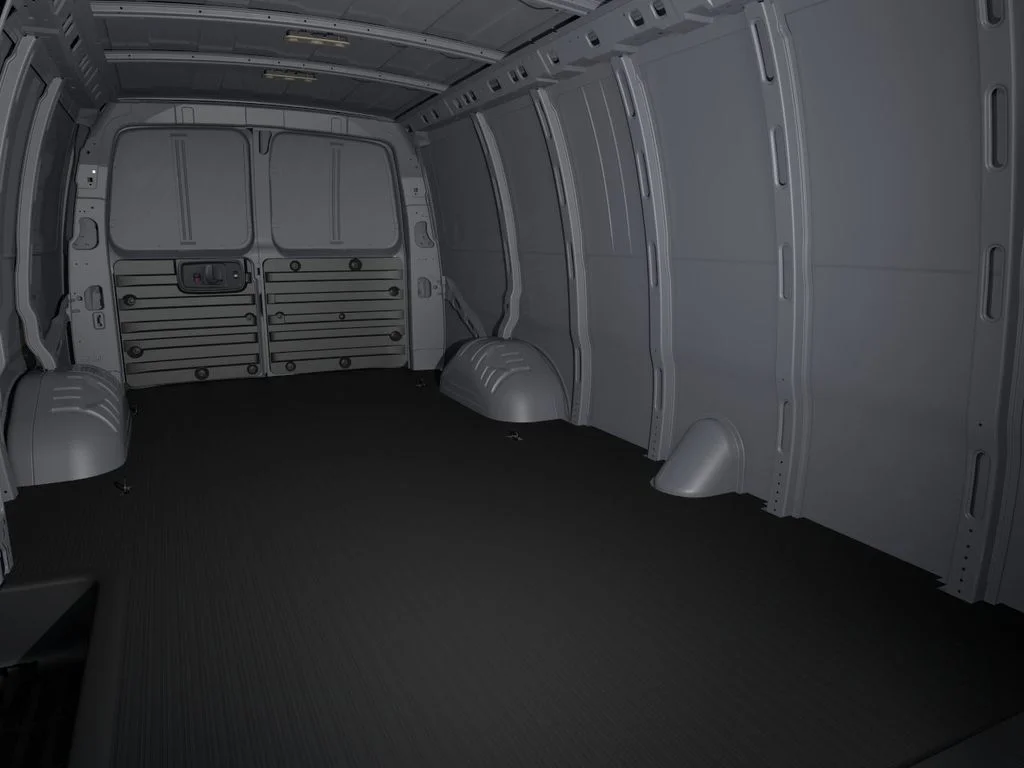

- Cargo Area Length @ Floor to Console: 173.65
- Cargo Area Length @ Floor to Seat 1: 146.75
- Cargo Area Width @ Beltline: - TBD -
- Cargo Box Width @ Wheelhousings: 52.47
- Cargo Box (Area) Height: 55.08
- Cargo Volume: 283.6
- Model Group: Express
- Vehicle Segment: Large Van
- Vehicle Type: Extended Cargo Van
- Body Cab Style: Extended Cargo Van
- Engine Displacement Units: 6.6
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 2
- Country of Origin: United States Chevrolet Trucks
Details
- Preferred Equipment Group 1WT

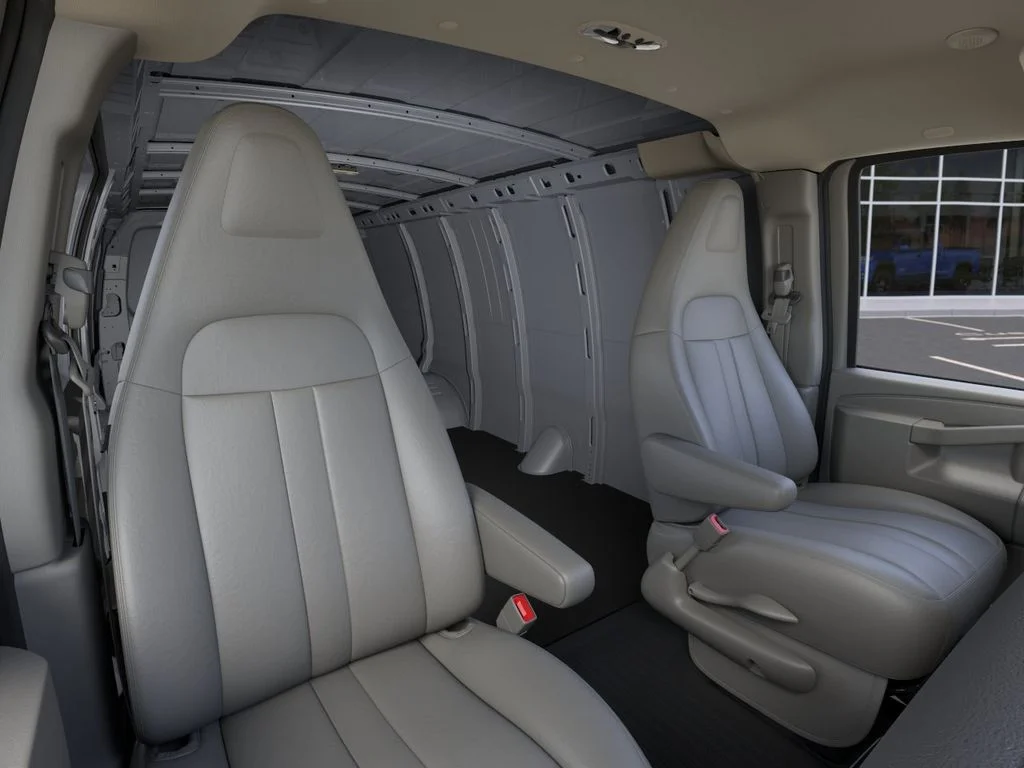

- Front Reclining High-Back Bucket Seats
- Remote Keyless Entry
- Full-Length Black Rubberized-Vinyl Floor Covering
- Single-Zone Manual Air Conditioning
- Driver and Front Passenger Vinyl Visors
- 3.42 Rear Axle Ratio
- Cruise Control
- 150 Amp Alternator
- 16" x 6.5" Steel Wheels
- Tilt Steering Wheel

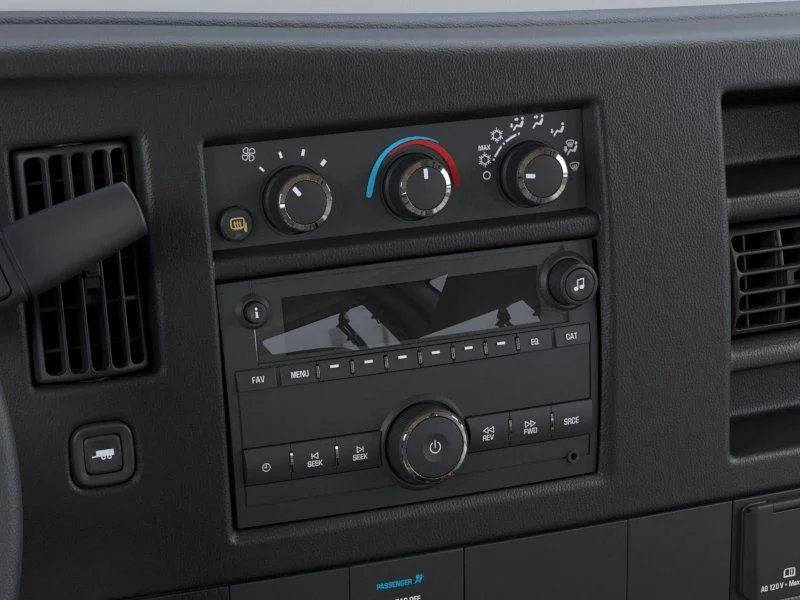

- Radio: AM/FM Stereo with MP3 Player
- Theft Alarm Notification
- Driver Convenience Package
- Driver and Front Passenger High-Back Bucket Seats

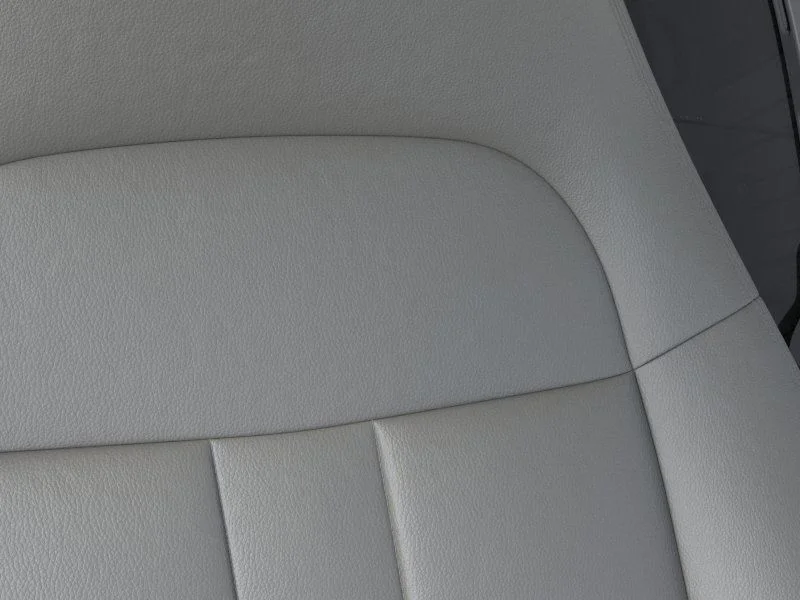

- Vinyl Seat Trim
- 4-Wheel Disc Brakes
- Exterior Parking Camera Rear
- Driver's Seat Mounted Armrest
- 2 Speakers
- Front beverage holders
- Variably intermittent wipers
- Trip computer
- Traction control
- Power windows
- Power steering
- Power door mirrors
- Passenger seat mounted armrest
- Passenger door bin
- Passenger cancellable airbag
- Overhead airbag
- Occupant sensing airbag
- Low tire pressure warning
- Heated door mirrors
- Fully automatic headlights
- Front wheel independent suspension
- Front anti-roll bar
- Emergency communication system
- Dual front side impact airbags
- Dual front impact airbags
- Driver door bin
- Delay-off headlights
- AM/FM radio
- ABS brakes
- Voltmeter
- Tachometer
- Front Bucket Seats
- Electronic Stability Control
- Air Conditioning
- Driver Air Bag
- Passenger Air Bag
- Passenger Air Bag On/Off Switch
- Front Side Air Bag
- Front Head Air Bag
- A/C
- AM/FM Stereo
- ABS
- Rear Wheel Drive
- 8 Cylinder Engine
- Gasoline Fuel
- Daytime Running Lights
- Power Door Locks
- Heated Mirrors
- Power Mirror(s)
- Bucket Seats
- Power Steering
- Tires - Front All-Season
- Tires - Rear All-Season
- Traction Control
- Power Windows
- Intermittent Wipers
- A/T
- MP3 Capability
- Power Outlet
- Immobilizer
- Transmission w/Dual Shift Mode
- Transmission Overdrive Switch
- Tire Pressure Monitor
- Trip Computer
- Steel Wheels
- 8-Speed A/T
- Back-Up Camera
- Stability Control
- Auxiliary Audio Input
- Requires Subscription
